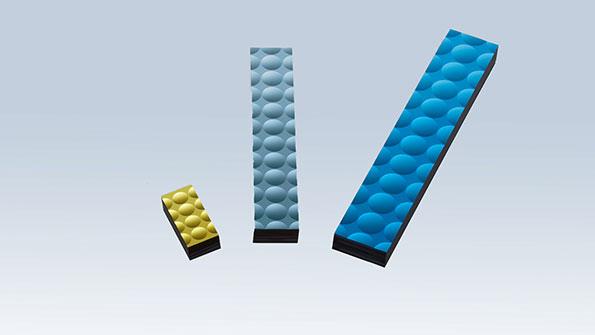

fiber coupling microlens arrays
Keyword：fiber,coupling,microlens,array
Zhuhai Multiscale’s fiber coupling microlens arrays are optimized for coupling light efficiently to single mode fiber arrays for optical communication
-
Ultra compact size
-
Low insertion loss
-
High uniformity of ROC, conic, pitch
-
Telcordia compliant
Technical Data：
Silicon
|
Product |
Channels |
Aperture（um） |
Pitch（um） |
ROC（mm） |
Focal Length |
NA |
Wafer Dimension (W*L*H） |
Roughness（nm） |
|
Si-750-1 |
1*1 |
690 |
/ |
2 |
0.8 |
1.38 |
0.9*0.9*0.5 |
≤5 |
|
Si-750-4 |
1*4 |
700 |
750 |
4 |
1.6 |
0.74 |
0.8*3.05*1 |
≤5 |
|
Si-750-8 |
1*8 |
700 |
750 |
4 |
1.6 |
0.74 |
0.8*6.05*1 |
≤5 |
|
Si-250-4 |
1*4 |
240 |
250 |
0.6 |
0.24 |
1.12 |
0.4*1.1*0.4 |
≤5 |
|
Si-250-8 |
1*8 |
240 |
250 |
0.6 |
0.24 |
1.12 |
0.4*2.1*0.4 |
≤5 |
Glass
|
Product |
Channels |
Aperture（um） |
Pitch（um） |
ROC（mm） |
Focal Length |
NA |
Wafer Dimension（W*L*H） |
Roughness（nm） |
|
G-127-4 |
1*4 |
125 |
127 |
0.365 |
/ |
/ |
0.6*1.8*1 |
≤5 |
|
G-127-8 |
1*8 |
125 |
127 |
0.365 |
/ |
/ |
0.6*2.3*1 |
≤5 |
Scope of delivery
Micro-tubes, undiced wafer, diced wafer, waffle packs
