Shack-Hartmann lens array
Keyword：Shack-Hartmann,lens,array,Zhuh

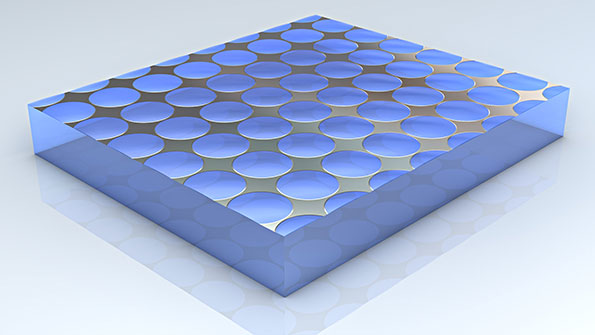

Zhuhai Multiscale’s Shack-Hartmann lens arrays are the heart of Shack-Hartmann wavefront-sensors. These microlens arrays are available in fused silica and in a variety of focal lengths.
-
Diffraction limited
-
Superior surface quality
-
Interstitial masking (optional)
-
Long focal lengths
Technical Data：
|
|
description |
note |
|
Surface profile |
Spherical |
|
|
Array Pitch |
300um |
customizable |
|
Focal length |
5~15mm |
customizable |
|
Roughness |
＜5nm |
|
|
Surface profile deviation |
＜30nm |
|
|
Physical dimension |
8mm*8mm*1mm |
L*W*H |
|
Material |
Fused silica |
|
Scope of delivery
Micro-tubes, undiced wafer, diced wafer, waffle packs
