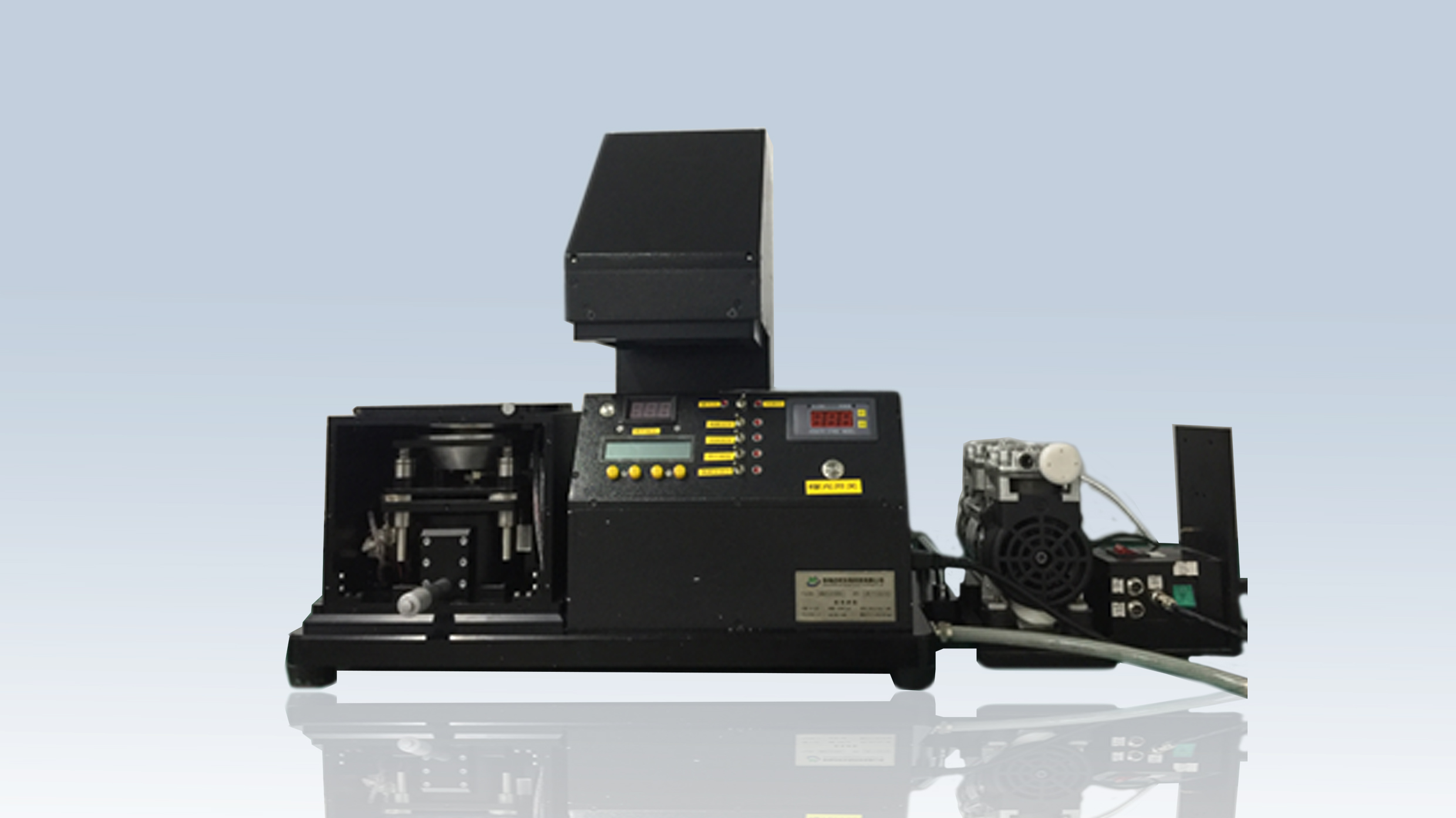

The Contact LED Printing is applied to a research institute, and can produce a single exposure micro-optics, an encoder, an LED package and the like, and can be directly placed on a desktop, and the operation is simple, and the exposure precision can reach 1 um.
Number： LEDM-PT100SA7020
Features and functions:
1. Subject to temperature changes, energy drift ≤ 2.5%, temperature does not exceed 60 ° C at most
2. Product stability surpasses similar products, even if there is lamp damage, it will not affect the uniformity on the exposure surface
3. Protection measures: temperature, abnormal message warning and display functions
4. Convenient maintenance: The replacement cycle of parts consumables is calculated in years, and optical technical parameters such as irradiation intensity and uniformity are calculated in years
Operating conditions:
Operating environment
· Operating temperature: 16 ° C ≤ indoor temperature ≤ 25 ° C
· Indoor relative humidity, annual average is 50%
· The dust-free environment requires static below 10,000
· The vibration environment does not exceed the machine class B specified in the international standard ISO2372
Replace hardware condition
· Provide electrical access signals
· Provide a good exposure machine
· Provide 1KW AC220V/50HZ power interface
· Air cooling
Composition：
· The body material is made of aluminum, sheet metal and stainless steel.
· The selected electrical materials comply with the national electrical safety design standards.
· Main accessories
|
NO. |
Name |
Quantity |
|
1 |
LED Contact lithography machine |
1 |
|
2 |
Silent vacuum pump |
1 |
Specifications：
Basic specifications
|
NO. |
Category |
Parameter |
Remarks |
|
1 |
Light area |
110mm×110mm |
|
|
2 |
Light uniformity |
≥95% |
New machine status measurement=(max-min)/（Max+Min） |
|
3 |
Center wavelength |
365nm |
|
|
4 |
Strength |
≥30mw/cm2 |
New machine，OPHIR 365nm Probe measurement
280mw（LS128 Full band header） |
|
5 |
Parallel half angle range |
2.5° |
Small hole imaging measurement |
|
6 |
Energy stability |
≤1% |
Repeat the same position within 1 hour |
|
7 |
Working distance |
68mm-120mm |
|
|
8 |
The light source module warranty |
1 year |
|
|
9 |
Light attenuation during the warranty period |
≤12% |
Based on the factory strength of the new machine |
|
10 |
Rated electric power |
＜250W |
220V Single-phase power supply |
|
11 |
Vacuum interface |
Outer diameter 12 inner diameter 8PU tube |
|
|
12 |
control method |
Level mode |
Receive 24V voltage to light, accept 0V to extinguish |
|
Remark: Due to the error of the measuring tool or the instrument itself, the above parameter measurement allows ±5% error |
Aging Specifications：
· Light uniformity aging ≤ 0.2% per month
· Strength aging ≤ 1% per month
